Home EV

eDeliver75

eDeliver75

eDeliver75

The MAXUS eDeliver75 is a capable, technologically advanced, and environmentally friendly solution for modern businesses seeking to electrify their urban delivery fleets. It combines practical cargo capacity, a sufficient real-world driving range, fast charging, and a high level of standard safety and comfort features, making it a strong contender in the global electric light commercial vehicle market.

  • G.V.W. (kg) :

    7490
  • Payload (kg) :

    4590/4480
  • Wheelbase (mm) :

    3400/4500
  • Capacity (kWh) :

    120
  • Driving Range (Full Load, Comprehensive Condition ) :

    250
New Products

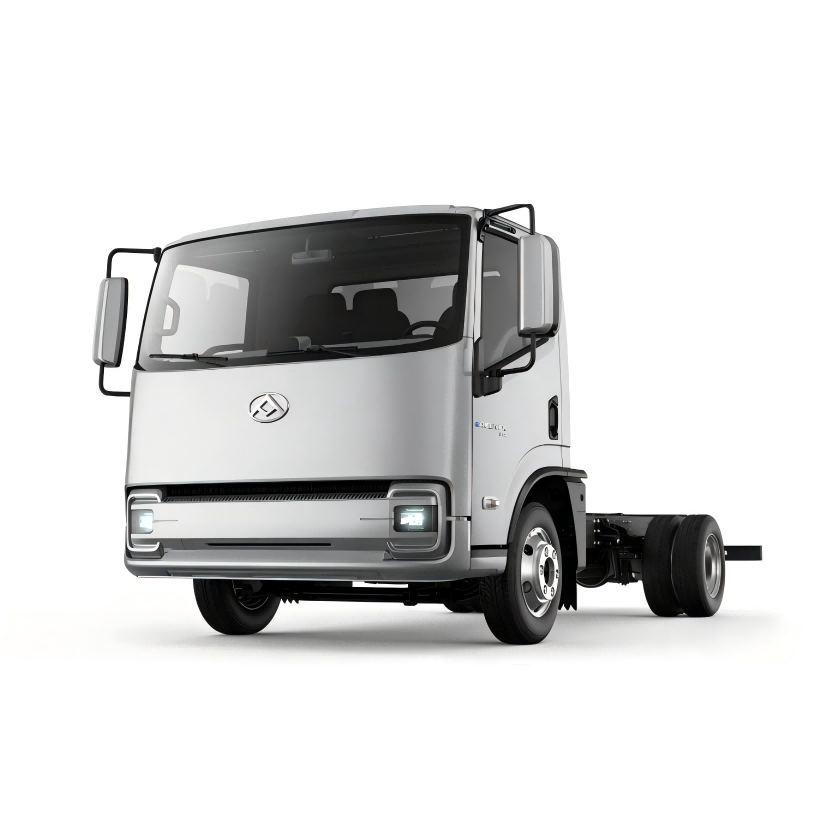

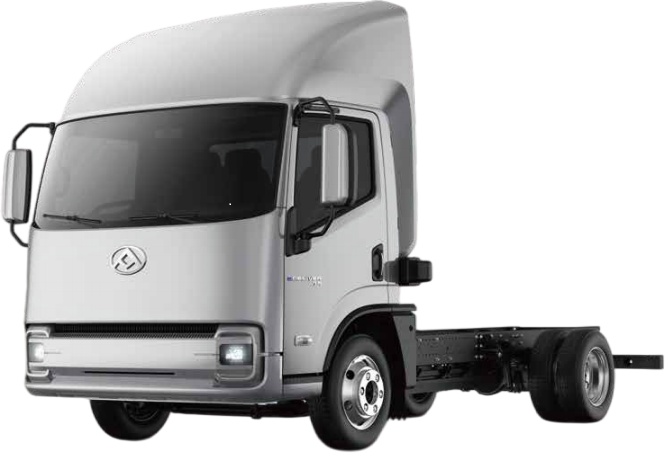

SAIC MAXUS eDeliver75 – Light Electric Truck



The SAIC MAXUS eDeliver75 is a versatile and modern light-duty electric commercial vehicle designed for efficient urban logistics and distribution.

It is available in two variants: a short wheelbase (SWB) and a long wheelbase (LWB) model, offering flexibility for different cargo space requirements.



Product Specifications

--------------占位---------------

Number of Seats 3 3
Overall Length (mm) 5958 7973
Overall Width (w/ mirrors, mm) 2830 (short arm mirrors)/2929 (long arm mirrors) 2830 (short arm mirrors)/2929 (long arm mirrors)
Overall Width (w/o mirrors, mm) 2145 2145
Overall Height (mm) 2313 2313
Wheelbase (mm) 3400 4500
Max. Permissible Length (mm) 6573 8333
Max. Permissible Width (w/ mirrors, mm) 2929 2929
Max. Permissible Width  (w/o mirrors, mm) 2550 2550
Max. Permissible Height (mm) 4300 4300
Max. Permissible Refitting Structure Length (mm) 4815 6575
Max. Permissible Refitting Structure Width (mm) 2550 2550
Max. Permissible Refitting Structure Height (mm) 3470 3450
Ground Clearance (unladen, mm) 185 185
Front Suspension leaf spring 3 leaf spring 3
Rear Suspension leaf spring 3+3 leaf spring 3+3
Weights & Payload
GVW (kg) 7490 7490
CVW (kg) 2900 3010
Payload (kg) 4590 4480
GVW axle load: front/rear (kg) 2440/5050 2490/5000
Max. axle load: front/rear (kg)  3000/6000 3000/6000
GTM (kg) 10990 10990
Towing Capacity (unbraked, kg) 3500 3500
Battery & Charging
Battery Capacity(kWh) 120 120
Range WLTP combined (GVW, km) 250 250
Range WLTP city (km) 300 300
Energy Consumption WLTP Combined (kWh/100km)* 43~57 43~57
AC Charging Time (5%~100%) (h)/ Charging Power (kW) Three-Phase 11h/11kW(S)
6.8h/22kW(O)
11h/11kW(S)
6.8h/22kW(O)
DC Charging Time (20%~80%) (min)/ Charging Power (kW) 30min (approx.) / 120kW 30min (approx.) / 120kW
Battery Thermal Management
(Liquid cooling & Liquid heating)
S S
EPTO (kW) 15 (S)
100 (O)
15 (S)
100 (O)
Charging wire: Mode 3, Three-Phase S S
V2L Exterior (kW) 6.6 6.6
V2L Interior O O
Power & Driving
Driving Wheel RWD RWD
Rated Power/ Max. Power (kW) 75/150 75/150
Rated Torque/ Max. Torque (N.m) 220/440 220/440
Max. Speed (km/h) 90 90
Min. Turning Diameter(m) 12.2 13.8
Approach Angle/Departure angle (CVW, °) 20.9/16.1 20.1/14.5
Approach angle/Departure angle (GVW, °) 17.8/10.1 17.6/8.7
Max. Climbing Gradient (%) 30 30
Tyre Size 205/75R17.5 14PR 205/75R17.5 14PR
Exterior
LED Headlights S S
Eelectric Headlight Height Adjust  S S
Power-Heated Exterior Mirrors S S
Removable Front Tow Hook S S
Rear Trailer Tow Interface S S
Printed Antenna S S
Interior & Comfort
Multifunctional Heated Steering Wheel S S
Column-Mounted Shifter S S
Manual Six-Way Heated Driver Seat O O
Manual Four-Way Heated Driver Seat With Shock Absorption O
Side Door Windows (One Click Down) S S
Integral Air Conditioner  S S
7" LCD Instrument Screen S S
12.3" Touch Screen with Carplay & Android Auto S S
USB Ports 1 Type A + 1 Type C 1 Type A + 1 Type C
LOV (Lnternet Of Vehicle): Vehicle Condition & Remote Control S S
2 Speakers S S
DAB (Digital Audio Broadcasting) S S
Keyless Start S S
Smart Key S S
Safety & Security
Tyre Pressure Monitoring System S S
Driver & Co-Driver Airbags S S
Seatbelt Unbuckle Reminder S S
360-Degree HD Surrounding Image S S
Reverse Sensor S S
ALCOLOCK Interface S S
Driver Assistance
ACC S S
AEB S S
BSIS S S
Electric Power Assist Steering S S
EPB S S
ESC S S
Fatigue Driving Advanced Warning System S S
FCW S S
LDW & LKA S S
MOIS S S
Pedestrain Reminder S S
TSR S S
*Estimated range & energy consumption under EU WLTP test standard. Actual range & energy consumption varies with conditions such as size&shape of cargo box, temperature, operation of air conditioner, driving mode, route conditions, battery capacity loss and loading mass. When installing a tall cargo box, it is advisable to install a shroud to reduce wind resistance.





Product Overviews



eDeliver75: Comprehensive Product Overview

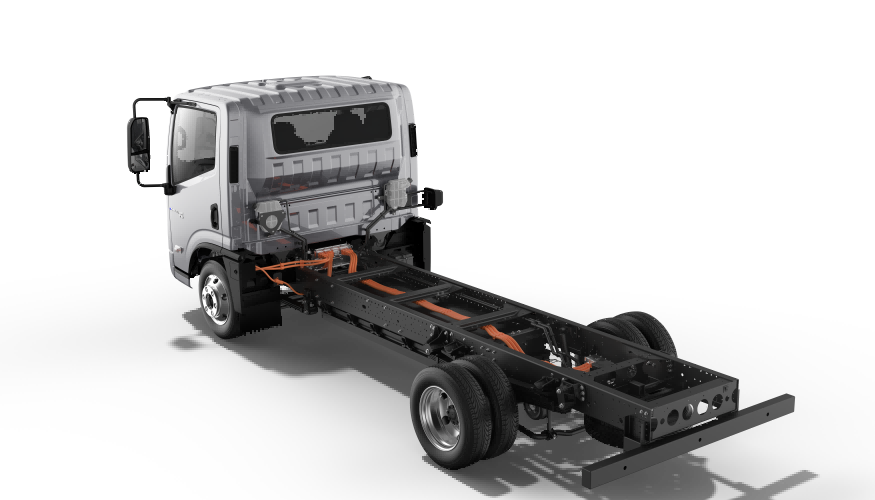

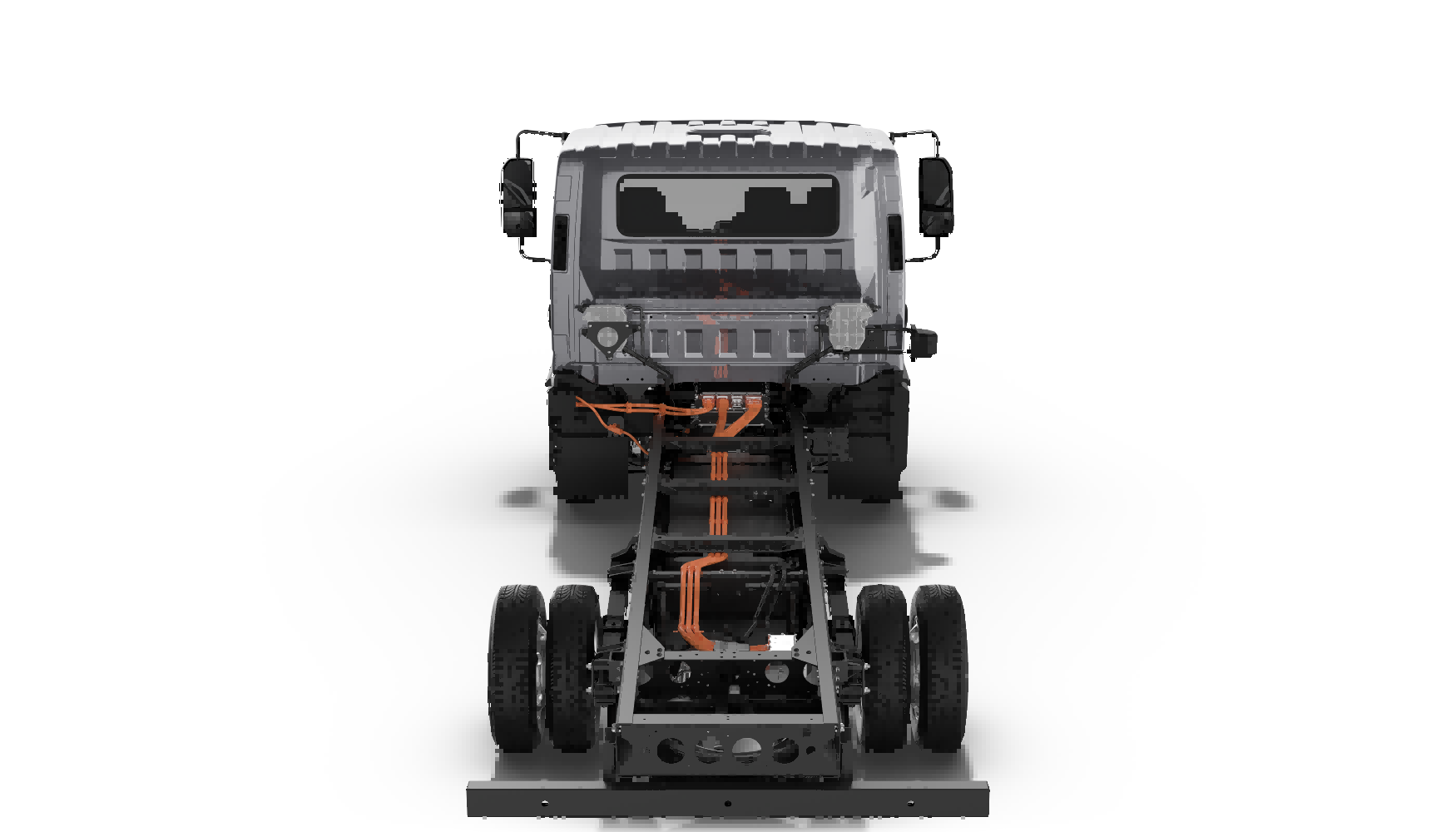

Zero-Emission Powertrain:

Fully electric, powered by a CATL 120 kWh lithium-ion battery pack, ensuring quiet, clean urban operation with zero tailpipe emissions.



Impressive Range:

Delivers a WLTP-certified range of up to 250 km under combined conditions (300 km city driving), supporting full-day urban delivery cycles.



High Payload Capacity:

With a Gross Vehicle Weight (GVW) of 7490 kg, the eDeliver75 offers a substantial payload of up to 4590 kg (SWB) or 4480 kg (LWB).



 Robust Performance:

Features a 75 kW (rated) / 150 kW (peak) electric motor, providing 220 Nm (rated) / 440 Nm (peak) of torque. It offers a maximum speed of 90 km/h and a gradeability of 30%.



 Fast & Flexible Charging:



Supports both AC charging (11 kW standard, 22 kW optional) and DC fast charging. The battery can be charged from 20% to 80% in approximately 30 minutes at a 120 kW DC station.



 Advanced Features for Driver & Safety: Comes equipped with a comprehensive suite of standard features including:



Safety: Driver & co-driver airbags, ABS, ESC, Tire Pressure Monitoring System (TPMS), 360-degree surround camera, rear sensors, and advanced driver assistance systems (ADAS) such as AEB (Automatic Emergency Braking), ACC (Adaptive Cruise Control), and Lane Departure Warning (LDW).

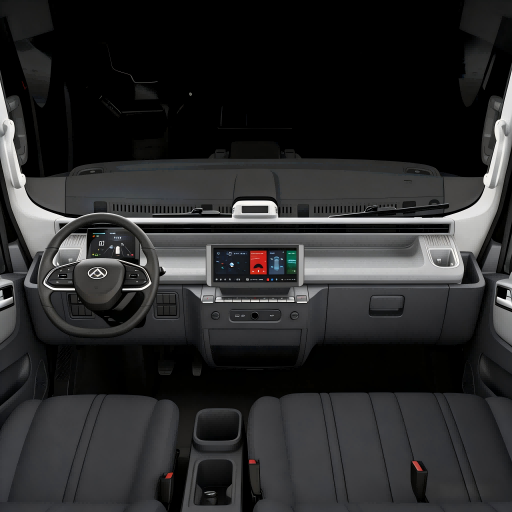

 Comfort & Tech: A 12.3" touchscreen with CarPlay & Android Auto, a 7" LCD instrument cluster, multifunctional heated steering wheel, air conditioning, smart key, and keyless start.



 Global Compliance: Designed to meet international standards and is available with both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations, certified for markets such as those requiring ECE regulations.
